Cost Effective High End Proportional Counter Models

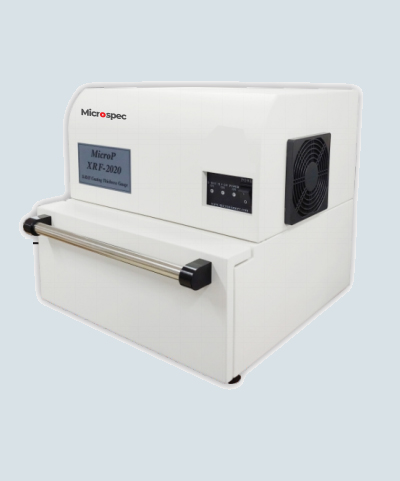

MS Gold
| Model Name/Number | MS Gold |
|---|---|
| Brand | Microspec |
| Weight | Approx. 30 kg |
| Detector | Proportional Counter make Canon Japan |
| X-Ray Tube | Micro Focus, Canon Japan |
| Accuracy | Better then 0.3% |
| Element Range | Au, Ag, Cu, Zn, Cd, Pt |
| Aperture Collimator | 1 mm fixed |
| Radiation Protection | Yes |
| Power Supply | 230 V AC, 50/60 Hz, Max. 200 W |
| Operating Temperature | 20 To 27 Degree Celsius |
| Sample Positioning | Manual adjustable sample stage |
| Video Microscope | High-resolution CCD colour camera for optical monitoring of the measurement location with Laser |
| Max. Sample Weight | 3 kg |
| External Dimensions | D400 x H425 x W400 mm |
| Measuring Direction | Top to Bottom |
| Aperture (Collimator) | 1 mm |
| Detector Type | Proportional Counter detector make Canon Japan |
| Type | XRF Gold Testing Machine |
| Manufacturer | MicroP Co. Ltd., South Korea |
About:
Top to Bottom Proportional Counter machine that can detects Au, Ag, Cu, Zn, Cd, Pt in Gold
Other Details:
- Detector - Proportional counter make Canon Canon (Made in Japan)
- Micro Focus, Oil cooled X-Ray tube, 50KV 1mA make Toshiba (Made in Japan)
- Top to Bottom Geometry
- Manual sample stage
- Detects Au, Ag, Cu, Zn, NI & Cd
- Accuracy better than 0.3%
Features:
- Collimator - Fixed 1 mm
- Dual display function to show live testing to customers
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X -ray tube use equals cooler operating temperatures and longer tube life.
Chamber Temperature Regulation:
Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation.
MS Gold GT
| Model Name/Number | MS Gold GT |
|---|---|
| Brand | Microspec |
| Weight | Approx. 35 kg |
| Measuring Direction | Top to Bottom |
| Detector | High-End Proportional Counter detector make Canon Japan |
| Accuracy | 0.3% |
| Element Range | Au, Ag, Cu, Zn,Pt, Cd, Ir, Ru, Os |
| Radiation Protection | Yes |
| Power Supply | 230 V AC, 50/60 Hz, max. 200 W |
| Operating Temperature | 20-27 Degree Celsius |
| Sample Positioning | Manual Adjustable Sample Stage |
| Video Microscope | High-resolution CCD color camera for optical monitoring of measurement location along with focus |
| Maximum Sample Weight | 3 kg |
| External Dimensions | D400 x H425 x W400 mm |
| X-Ray Tube | Microfocus, Oil cooled, 50 Kva, make Canon Japan |
| Aperture (Collimator) | Fixed 0.6 mm |
| Detector Type | High-End Proportional counter detector make Canon Japan |
About:
High-End Proportional Counter machine that can detect Ir, Ru & Os in Gold
Other Details:
- Detector: High-End Proportional counter make Canon (Made in Japan)
- Micro Focus, Oil cooled X-Ray tube, 50KV 1mA make Canon(Made in Japan)
- Top to Bottom Geometry
- Manual sample stage
- Detects Au, Ag, Cu, Zn, Cd, Pt, Pd &(Ir, Ru, Os > 0.5%)
- Accuracy better than 0.3%
Features:
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter.Less X -ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation.
- Design - First ever compact, Top to bottom Proportional counter machine with Oil cooled Microfocus x-ray tube
- Performance - Canon Japan make high-end X-Ray tube and detector with advanced software and calibration makes it possible to detect impurities like Ir, Ru & Os in Gold.
- Stage - Adjustable manual sample stage for effectively testing of ornaments
