Ultra high end models with 1st in industry features - Vitus SDD Detector

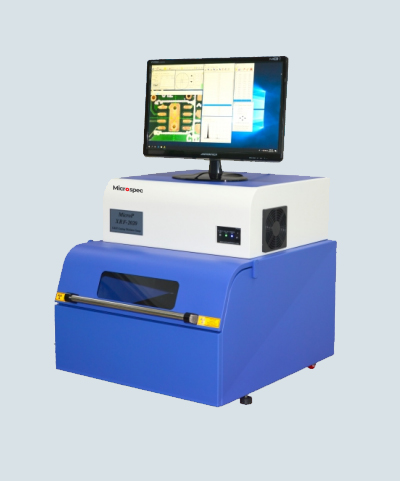

Microspec 350
( Top to Bottom - Automatic)
| Model Name/Number | Microspec 350 |
|---|---|
| Brand | Microspec |
| Automation Grade | Automatic |
| Voltage | 50 kV |
| Weight | Approx. 60 kg |
| Element Range | Na to U including impurities like Ir, Re, Os, Ru, along with light elements like Mg, Al, P & S |
| X-Ray Tube | Micro Focus, Oil cooled, Canon (Made in Japan) |
| Accuracy | 0.1% for Gold & 0.2% for Silver |
| Aperture Collimator | Multi-collimators upto 6 (0.1, 0.3, 0.6, 1, 2 & 4 mm) customizable |
| Measuring Direction | Top to Bottom |
| Radiation Protection | Yes |
| Sample Stage | Automatic programmable XYZ stage |
| Power Supply And Consumption | 230 V, 50/60 Hz, Max. 200 W |
| Operating Temperature | 10 To 25 Degree Celsius |
| Sample Positioning | Yes |
| Zoom Factor | 20x Digital zoom |
| Design | Automatic XYZ sample stage with Auto focus and Auto alignment |
| Max. Sample Weight | 5 kg |
| Detector | Ketek V-SDD (Made in Germany) |
| External Dimensions | W610 x D670 x H600 mm |
| Inside Chamber Dimensions | W550 x D550 x H100 mm |
| Aperture (Collimator) | Automatic software controlled |
| Detector Type | Ketek V-SDD (Silicon Drift) detector peltier-cooled |
| Type | XRF Gold Testing Machine |
| Manufacturer | MicroP Co. Ltd., South Korea |
About:
Fully Automatic Top to bottom Microfocus Gold testing machine with Ketek V-SDD Detector (Made in Germany) & Artificial Intelligence
Other Details:
- Ketek V-SDD detector (Made in Germany) with resolution better then 150 eV
- Micro Focus, Oil cooled, 50KV 1mA X-Ray tube make Canon (Made in Japan)
- Top to bottom geometry with Auto Laser focus beam and Auto alignment
- Programmable automatic XYZ sample stage
- Detects All elements from Na-U including Ir, Re, Os, W, Ru, Sn, etc. along with light elements like Al, Mg, S & P.
- Accuracy better than 0.1% for Gold & 0.2% for Silver
Features:
- Collimator - Automatic Multi collimator changer up to (0.1,0.3,0.6,1.0,2 & 4 mm)
- Detector Safety - The system has mechanical shielding along with buzzer to prevent detector from getting damaged by sample.
- Automatic 2D & 3D Testing - Simply move the cursor to any area of the video image, click the mouse, and the stage moves the parts directly under the x-ray beam. Fast, controllable parts positioning is accomplished with ease in seconds.
- Laser focus Feature - Precision Laser focusing on parts provide the most consistent measurements accuracy possible and eliminates operator error.
- Dual display function to show live testing to customers.
- Exclusive Shutterless design Extends Tube Life - Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X-ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation.
- Automatic X-ray Beam Alignment - The Beam Position feature aligns the X-ray beam to the camera image. This prevents measurements errors, Unnecessary service calls, or instruments downtime due to misalignment.
Microspec 250
( Top to Bottom - Manual )
| Model Name/Number | Microspec 250 |
|---|---|
| Power | 230 V, 50/60 Hz, Max. 200 W |
| Brand | Microspec |
| Weight | Approx. 50 kg |
| Accuracy | 0.1% for Gold & 0.2% for Silver |
| Element Range | Ti - U including impurities like Ir, Os, Re, Ru, etc. |
| Radiation Protection | Yes |
| Operating Temperatures | 20-27 Degree Celsius |
| Sample Positioning | Manual adjustable sample stage |
| Video Microscope | High-resolution CCD colour camera for optical monitoring of the measurement location along with lase |
| Zoom Factor | 20X Digital Zoom |
| Max. Sample Weight | 3 kg |
| External Dimensions | W610 x D670 x H600 mm |
| Inside Chamber Dimensions | W550 x D550 x H100 mm |
| X-Ray Tube | Tungsten tube, Oil Cooled, 50 Kv, Microfocus |
| Aperture (Collimator) | Automatic software controlled |
| Measuring Direction | Top to Bottom |
| Detector Type | Silicon Drift (V-SDD) detector peltier-cooled |
| Type | XRF Gold Testing Machine |
| Manufacturer | MicroP Co. Ltd., South Korea |
About:
Top to Bottom Microfocus Gold Testing machine with Ketek V-SDD Detector (Made in Germany)
Other Details:
- Ketek V-SDD detector (Made in Germany) with resolution better than 150 eV
- Micro Focus, Oil cooled X-Ray tube, 50KV 1mA make Canon (Made in Japan)
- Top to bottom geometry
- Manual adjustable sample stage with Laser focus beam
- Detects All elements from Na-U including Ir, Re, Os, W, Ru, Sn, etc. along with light elements like Al, Mg, S & P.
- Accuracy better than 0.1% for Gold & 0.2% for Silver
Features:
- Collimator - Automatic Multi collimator changer up to 6 (0.1,0.3,0.6,1.0,2 & 4mm) customizable
- Detector Safety - The system has mechanical shielding along with buzzer to prevent detector from getting damaged by sample.
- Laser focus Feature - Precision Laser focusing on parts provide the most consistent measurements accuracy possible and eliminates operator error.
- Dual display function to show live testing to customers.
- Exclusive Shutterless design Extends Tube Life -Unlike other X-ray systems, MicroP XRF generates X-ray only while taking measurements. Since the X-ray tube completely shuts off between measurements, there is no need for a mechanical shutter. Less X-ray tube use equals cooler operating temperatures and longer tube life.
- Chamber Temperature Regulation - Another first in X-ray design is the exclusive cooling controls which maintain consists temperature of key system electronics. Measurement stability is further enhanced by the reduction in temperature variation.
