| Model Name/Number |

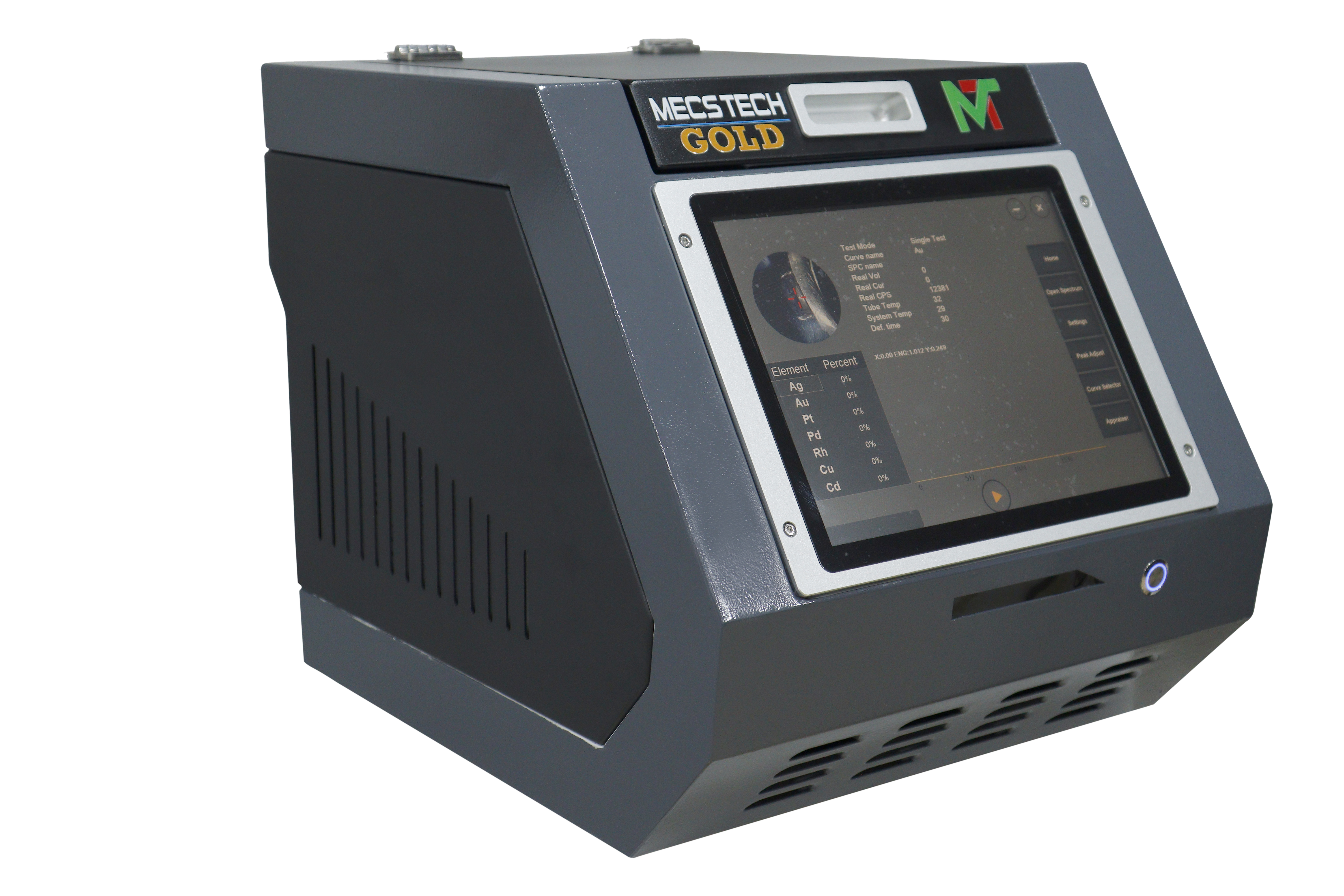

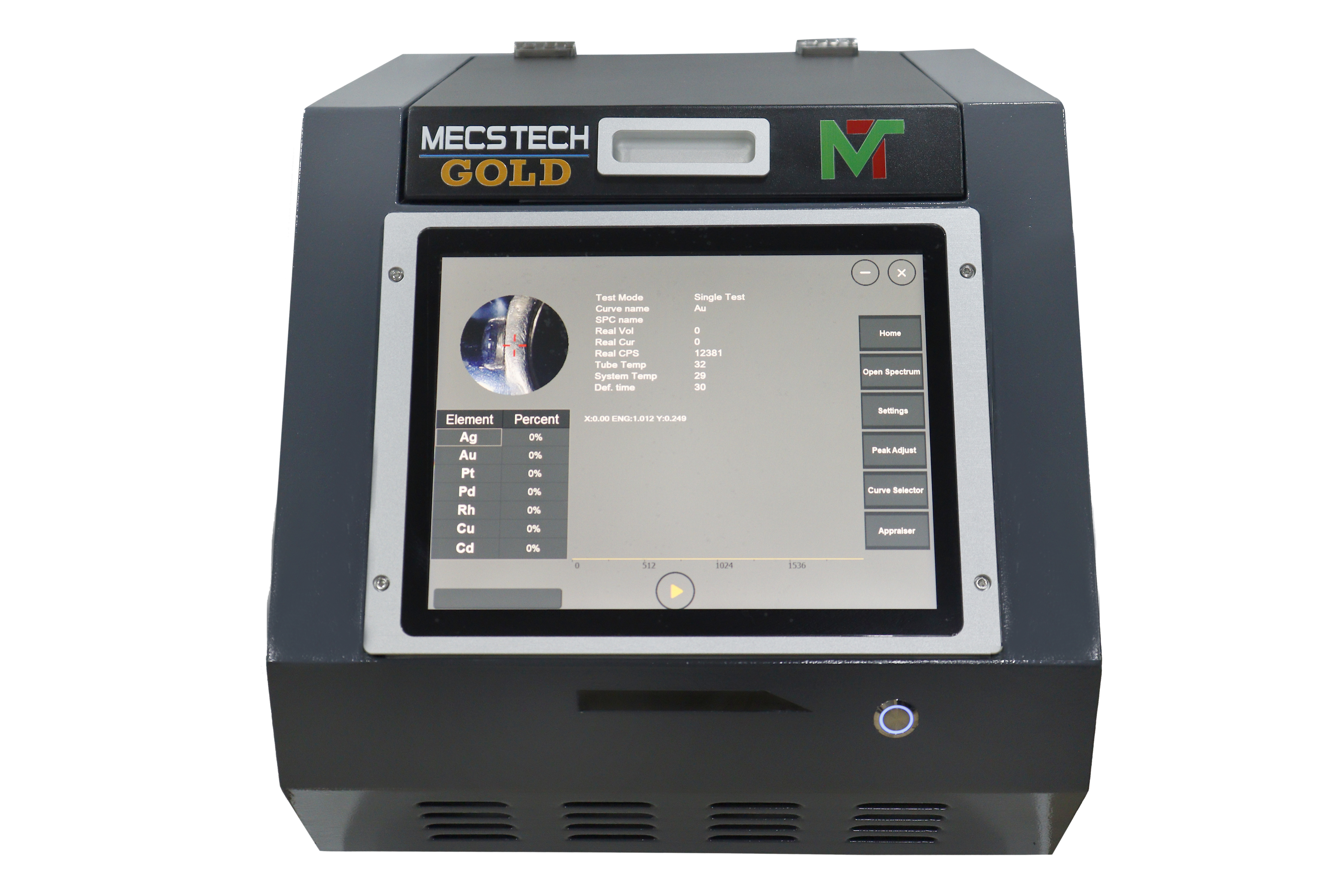

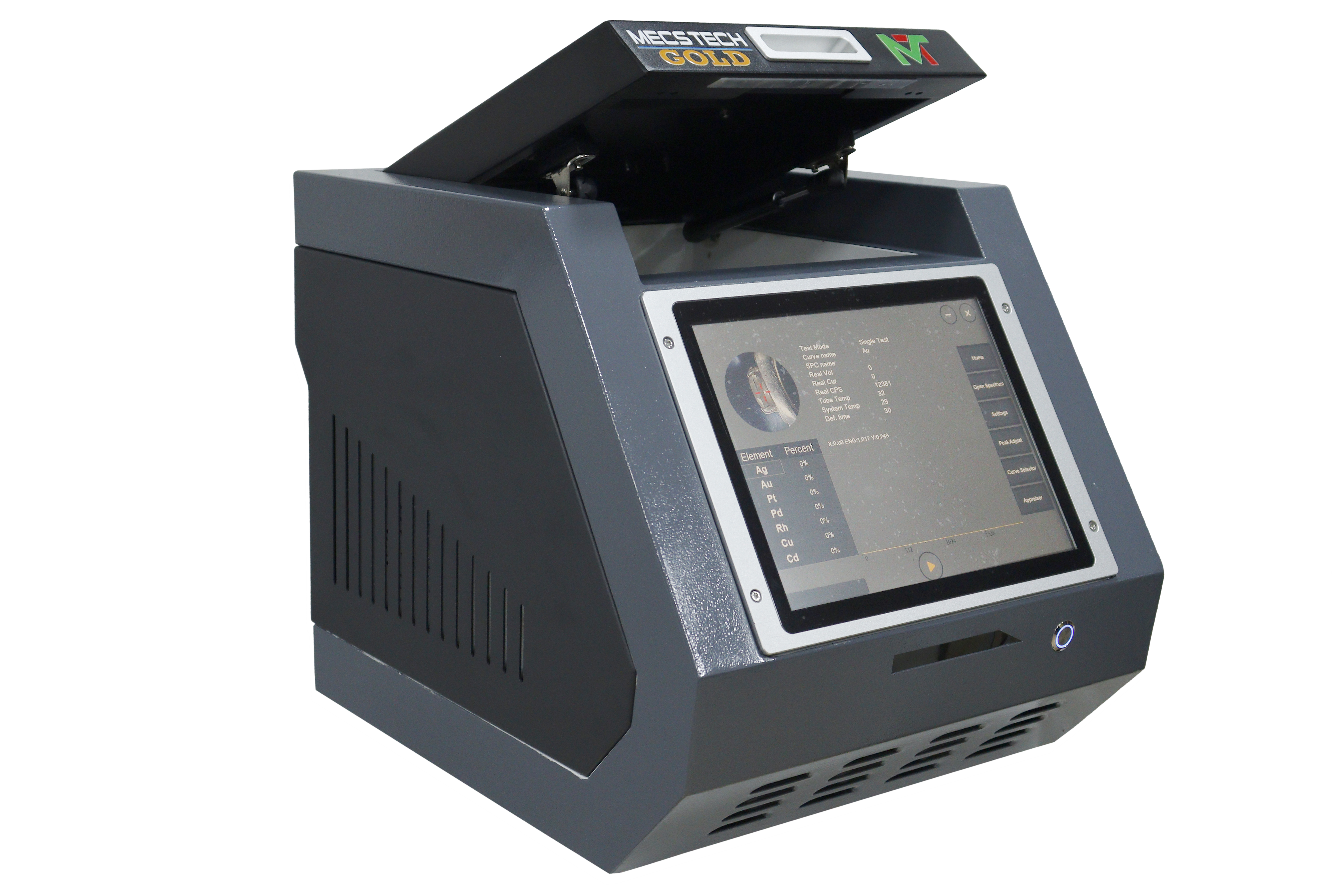

MECS TECH GOLD |
| Analysis Range |
0.01% to 99.99% |
| Accuracy |
0.3% to 0.5% |
| Sample Form |
Solid |
| High Voltage |
0~50KV / 0~1mA |
| Detector Type |
Gas Filled Proportional Counter |
| X- Ray Source |
W- Target X-Ray tube |
| Collimator |
Most Optimum Size 2 mm |
| Test Time |
30 Sec ~ 60 Sec |
| Camera |
HD Camera |
| Element Range |
Au, Ag, Cu, Cd, Pd, Pt, Rh |
| Interface |
Integrated Industrial Computer |
| Analysis Software |
Qualitative and Quantitative analysis Software |
| Working Voltage |
AC 230V / 50Hz |
| Sample Chamber Size |
310 x 270 x 100 (mm) |
| Ambient Temperature |
5 C ~ 28 C ( in Air Conditioned room ) |
| Relative Humidity |
15 % ~ 90 % |
| Unit Dimensions |
17(H) x 16(W) x 21( L) ( inches ) |
| Net/Gross Weight |
33/45 KG |
